Precision and Versatility in Fixed Headstock CNC Lathes #
JINN FA offers a comprehensive lineup of fixed headstock CNC lathes, engineered to meet the demands of modern machining environments. Each model is designed to deliver high accuracy, efficiency, and adaptability for a wide range of applications.
JCL-42TG/52TG/42TGM/52TGM
JCL-42TS/52TS/60TS/ 42TSM/52TSM/60TSM
JCL-42T/52T
JCL-4232/5232/5250/6050
JCL-65MY
SMART-32/42/32T8/42T8
Model Highlights #

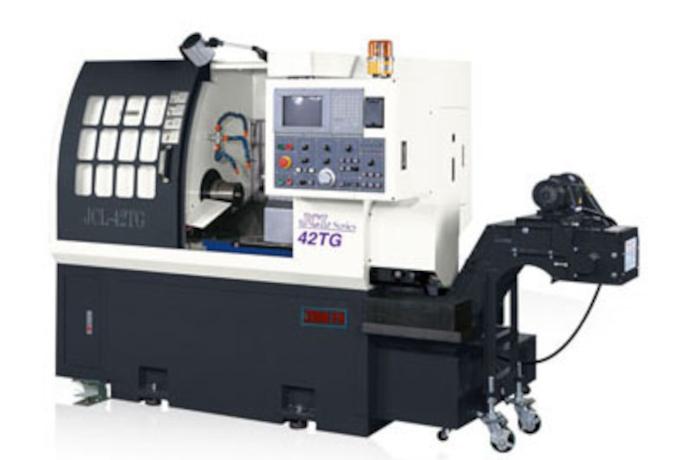

JCL-42TG/52TG/42TGM/52TGM
Designed for enhanced efficiency and convenience, this series features a drilling slide for simultaneous O.D. and I.D. machining. Options include an 8-position hydraulic turret or a 12-position power turret. The spindle supports a 6" 3-jaw chuck or collet chuck, and the 20° slant bed structure ensures effective chip disposal and easy access. Bar feeder is available as an option.

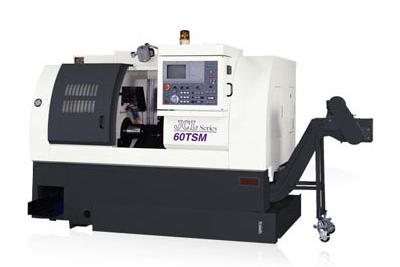

JCL-42TS/52TS/60TS/42TSM/52TSM/60TSM
This series is equipped with a sub-spindle for back side machining, reducing the need for secondary operations. Both spindles accommodate a 6" 3-jaw chuck or collet chuck. High spindle speed, fine precision, and a 12-position turret contribute to excellent efficiency.

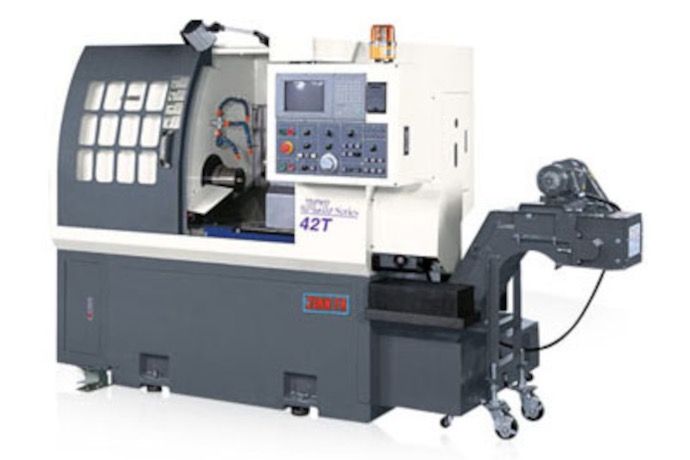

JCL-42T/52T
A versatile range from 2-axis to turret lathes, featuring an 8-position turret and a spindle that fits a 6" 3-jaw chuck or collet chuck. The 20° slant bed structure aids in chip removal and workpiece handling. Optional bar feeder available.

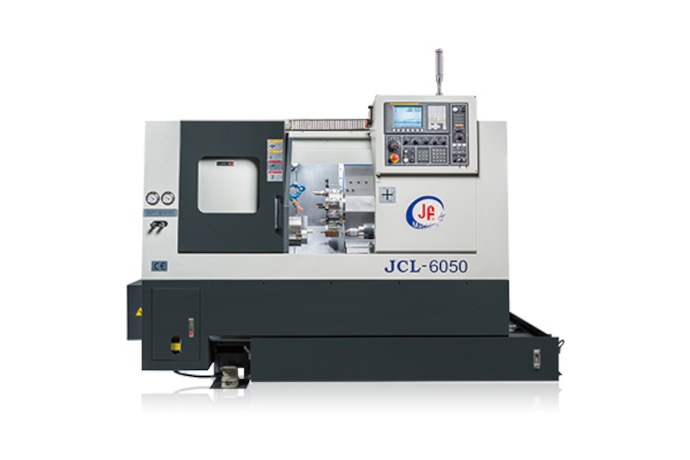

JCL-4232/5232/5250/6050
These models offer a 10-position hydraulic turret or a 12-position power turret. The spindle accommodates an 8" 3-jaw chuck or collet chuck. The 30° slant bed and linear motion guides provide smooth movement, while fast traverse and quick tool changes minimize non-cutting time. Power turret and C axis enable milling and drilling operations, streamlining auxiliary processes.

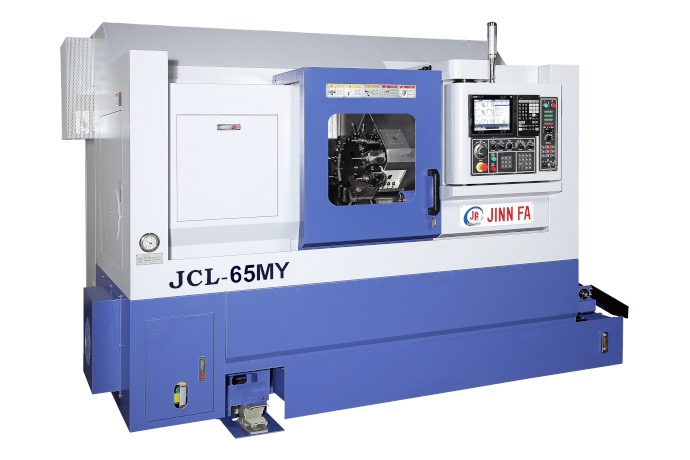

JCL-65MY
A versatile CNC lathe with a high-rigidity structure for continuous, high-speed machining. The BMT turret, combined with X, Y, Z, and C axes, enables comprehensive turning, milling, and drilling capabilities.

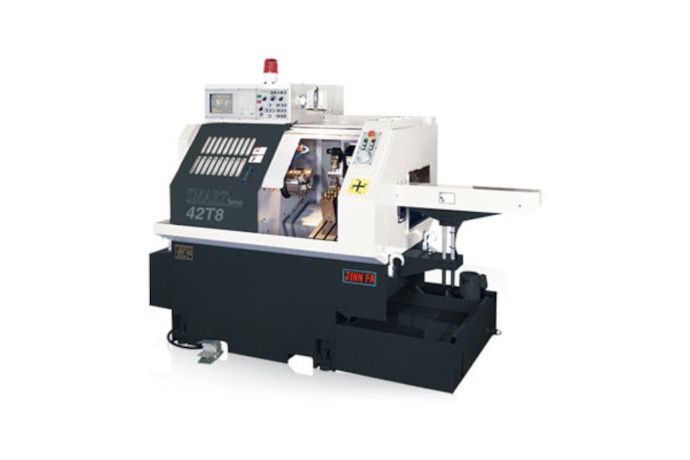

SMART-32/42/32T8/42T8
Compact and economical, the SMART series features a gang tool holder for high positioning accuracy and profitable machining. Designed for bar machining, these lathes offer high speed and reduced production costs. Optional bar feeder and parts catcher are available to further boost productivity.
