Precision Solutions for Complex and Slender Component Machining #
Understanding CNC Swiss-Type Lathes #
A CNC Swiss-type lathe, also known as a sliding headstock lathe, is engineered for high-precision turning of small, intricate, and elongated components. Unlike conventional lathes, the Swiss-type design supports the workpiece close to the cutting tool, minimizing deflection and enabling the achievement of tight tolerances and smooth surface finishes—particularly on long, slender parts. Originally developed for the Swiss watch industry, this technology is now essential in sectors demanding ultra-precision, such as medical, aerospace, electronics, and automotive manufacturing.
Advantages of Jinn Fa Swiss CNC Lathes #
Jinn Fa Machine Industrial Co., Ltd., a leading Taiwanese manufacturer, is recognized for its commitment to innovation, quality, and precision engineering. Choosing a Jinn Fa Swiss-type CNC lathe offers several key benefits:
- High-Performance Design: Rigid construction and advanced thermal stability ensure consistent accuracy.
- Made in Taiwan Quality: Manufactured under strict quality control and ISO standards.
- Flexible Tooling Configurations: Supports multi-axis machining, live tooling, and sub-spindles, enabling complete part production in a single cycle.
- Productivity-Oriented: Ideal for high-volume production with minimal downtime.
- Comprehensive After-Sales Support: Backed by extensive industry experience and customer-focused service.
Whether manufacturing intricate medical implants or precision aerospace components, Jinn Fa Swiss-type CNC lathes deliver the reliability and versatility required for demanding production environments.
Swiss-Type CNC Lathe Product Range #
JSL-12RB/RBY
JSL-20/20A
JSL-20AS
JSL-20AB
JSL-20RB/RBY
JSL-32AB/42AB
JSL-26ABY/32ABY/38ABY
JSL-42RB/42RBY/51RB/51RBY

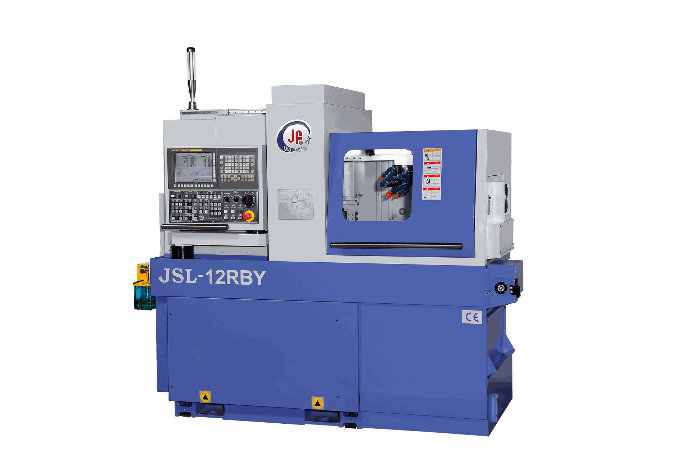

JSL-12RB/RBY #
The JSL series features a high-rigidity structure and supports both guide bush and non-guide bush machining. Tool-traveling turning on X, Y, and Z axes ensures superior performance for both long and short workpieces.

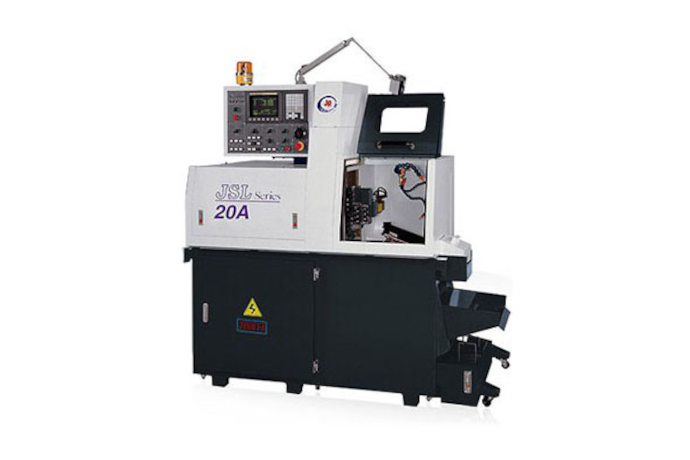

JSL-20/20A #
With a maximum turning diameter of 20mm, this model includes a guide bush holder and long parts catcher, making it suitable for long and complex components. It supports four-axis simultaneous movement (X/Y/Z/C), main spindle cross drilling, milling, and surface contour machining.

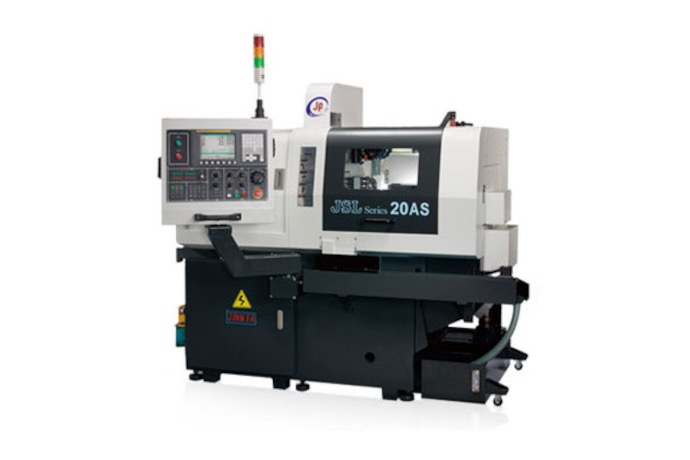

JSL-20AS #
Also supporting a maximum turning diameter of 20mm, this model offers both guide bush and non-guide bush holders for complex components. It features four-axis simultaneous movement (X/Y/Z/B/C) with main and sub tooling systems, cross drilling, milling, drilling, and tapping. Both main and sub spindles can drill simultaneously.

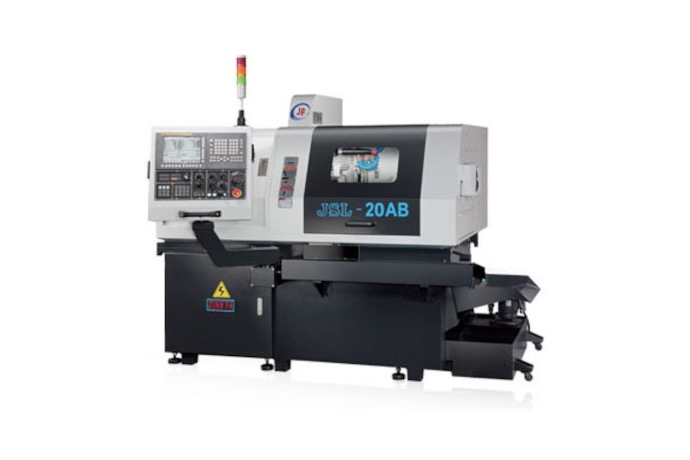

JSL-20AB #
With a 20mm maximum turning diameter, this model is equipped with a guide bush holder and long parts catcher for long and complex parts. The non-guide bush holder reduces the rest bar length up to 50mm. It supports seven-axis simultaneous movement (X1/Y1/Z1/X2/Z2/C1/C2), main/sub spindle C axis movement, and sub tooling for eccentric drilling, milling, and grooving.

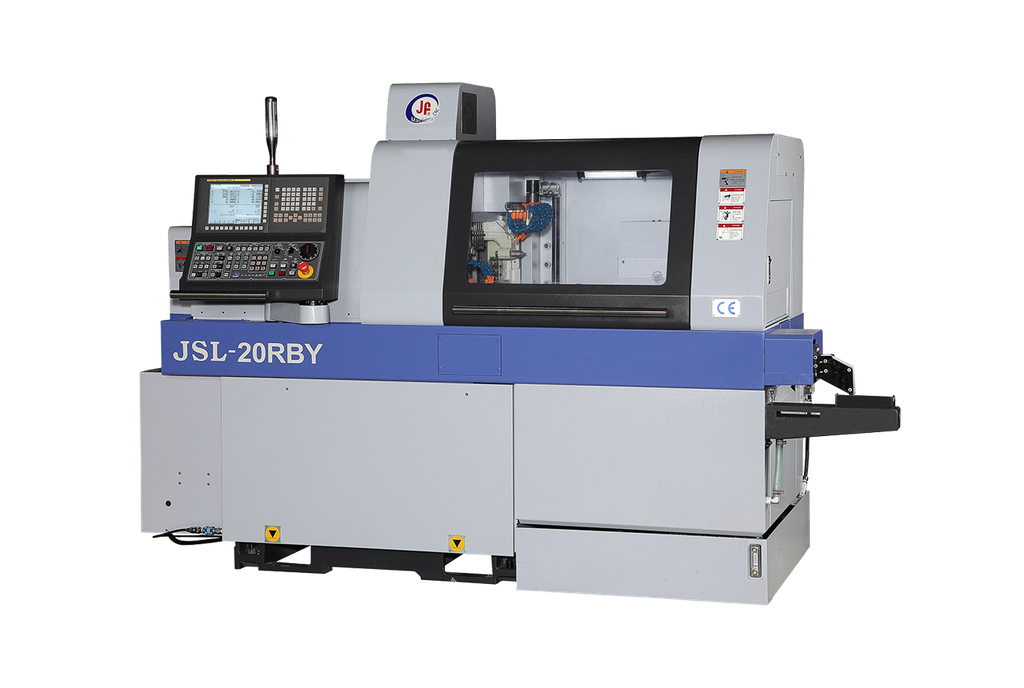

JSL-20RB/RBY #
Key features include advanced sliding headstock design and multi-axis capabilities for complex part production.

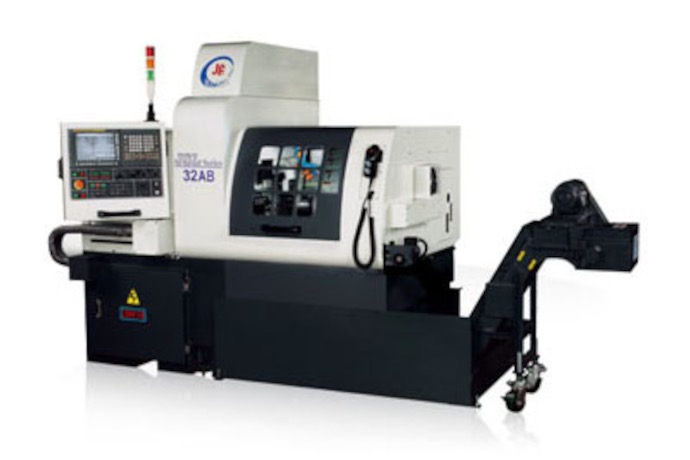

JSL-32AB/42AB #
Supporting maximum turning diameters from 26mm to 42mm, this model offers seven-axis simultaneous movement (X1/Y1/Z1/X2/Z2/C1/C2), main/sub spindle C axis movement, and sub tooling for eccentric drilling, milling, and grooving. Side drilling can be converted to end drilling.

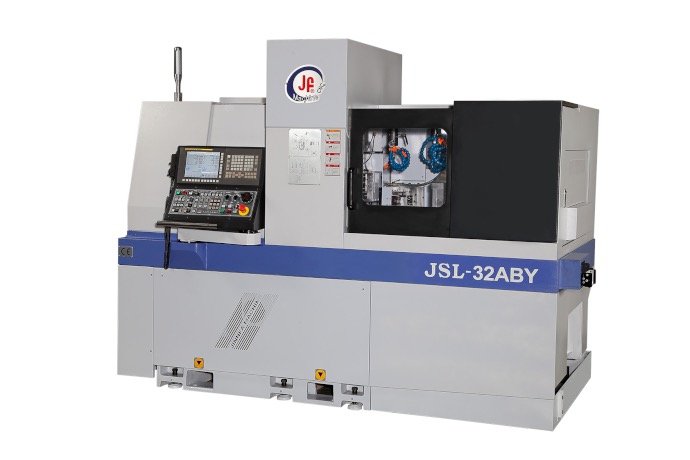

JSL-26ABY/32ABY/38ABY #
This series provides both guide bush and non-guide bush modes, with built-in motors and hydraulic clamping for both spindles. Up to 21 tool positions for the main spindle and 16 for the sub-spindle are available. The B axis (minimum 0.001 degree) enables multi-angle and surface precision machining for both main and sub spindles.

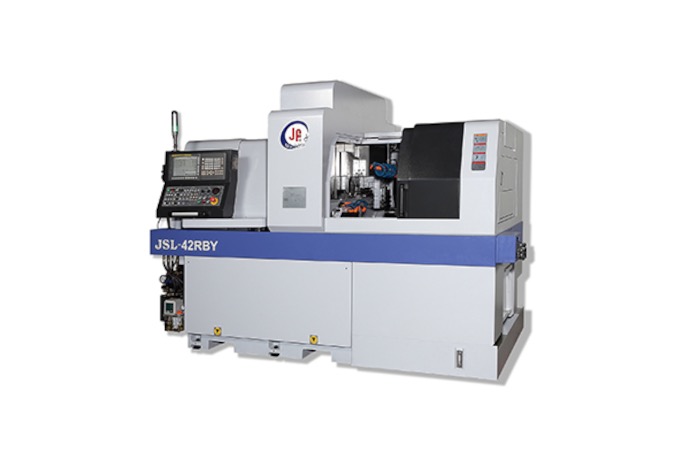

JSL-42RB/42RBY/51RB/51RBY #
With maximum turning diameters from 32mm to 51mm, this model supports up to eight-axis simultaneous movement (X1/Y1/Z1/X2/Y2/Z2/C1/C2). The sub tooling system enables eccentric drilling, milling, and grooving, with side drilling convertible to end drilling (six for front and six for back). The rigid structure and powerful live tools ensure stable and versatile machining performance.
Tailored Support for Your Manufacturing Needs #
Jinn Fa is committed to providing a diverse range of products and exceptional quality, ensuring a productive and collaborative experience for every customer. For further information or assistance in selecting the right Swiss-type CNC lathe for your application, please Contact Us.
